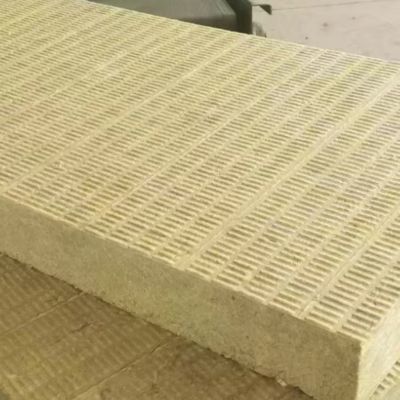

Building Rock Wool insulation Board Fireproof 1200x600mm 30mm-150mm

Brand Name:	SEASTAR
Model Number:	Customizable according to requirements
MOQ:	20m³
Price:	238 USD/tons (Current price)
Payment Terms:	spot goods and spot payment
Supply Ability:	2000 tons/month

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu, Sichuan, China

Certification:

CNASL6673

Density:

40 - 200 Kg/m³

Color:

Yellowish-brown

Stock Size:

1200×600（mm）

Thickness:

30mm-150mm

Electrical Insulation:

Good

Noise Reduction:

Good

Fireproofing:

Good

Hydrophobic Property:

Good

Temperature Resistance:

-268℃ ~ 650℃

Surface Finish:

Rough

Packaging Details:

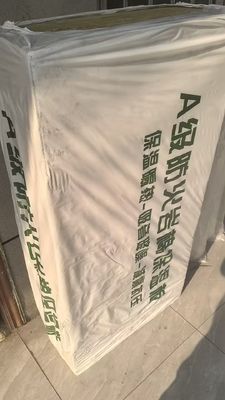

wrapped with a stretched polyethylene film directly on the outside

Highlight:

Fireproof Rock Wool insulation Board

Building Rock Wool insulation Board

30mm Rock Wool Rigid Insulation Panels

Product Description

Natural And Fireproof Rock Wool Boards with 25-Year Service Life

Rock wool boards are manufactured from natural minerals like basalt, melted at high temperatures and spun into fibers through centrifugal force. The production process includes fiber formation, curing, and cutting, resulting in products with exceptional thermal insulation, fire resistance, and sound absorption properties.

Multiple Applications

Building Insulation: Core layer in external wall systems, roof insulation between panels and waterproof layers, and soundproofing for partitions and ceilings
Industrial Insulation: High-temperature protection for kilns, pipelines, ship cabins, and chemical reactors in corrosive environments
Fire Safety: Fire barriers in external walls to prevent vertical fire spread, compliant with safety regulations
Acoustic Control: Noise reduction in concert halls, conference rooms, and other sound-sensitive environments

Core Advantages

Superior Fire Resistance: Class A non-combustible material outperforming organic insulators, maintaining structural stability during fires
Cost-Effective Solution: Combines insulation, fireproofing, and soundproofing in one material, reducing overall project costs
Durability: Resistant to extreme temperatures, moisture, and aging with a 25+ year service life matching building structures
Eco-Friendly: Made from natural minerals, toxin-free production, and fully recyclable at end-of-life

Comparison of Construction Materials

Comparison Items	Rock Wool Board	Polystyrene Board (EPS/XPS)	Polyurethane Board (PU)	Glass Wool Board	Aerated Concrete Block
Combustion Performance	Class A non-combustible (highest grade)	Class B1-B2 (flame-retardant-combustible)	Class B1 (flame-retardant, toxic fumes at high temperatures)	Class A non-combustible	Class A non-combustible
Thermal Conductivity (W/(m*K))	0.036-0.048	0.030-0.040 (EPS); 0.028-0.032 (XPS)	0.022-0.028	0.035-0.045	0.16-0.28
Insulation Performance	Good	Excellent (XPS better than EPS)	Superior (best insulation effect)	Good	Average
Sound Insulation Performance	Excellent (blocks air and solid sound transmission)	Average (weak in blocking low-frequency noise)	Good (closed-cell structure)	Good (mainly sound absorption)	Good (moderate sound insulation)
Mechanical Strength	Compressive strength ≥40kPa, good toughness	EPS ≥100kPa; XPS ≥200kPa	Compressive strength ≥200kPa, high hardness	Low compressive strength (≤30kPa)	Compressive strength ≥3.5MPa
Temperature Resistance Range	-268℃ to 650℃	-50℃ to 70℃ (deforms at high temperatures)	-50℃ to 120℃ (ages beyond this range)	-120℃ to 400℃	-50℃ to 600℃
Key Advantages	1. Top-level fire resistance 2. Integrated performance 3. Harsh environment adaptability	1. High insulation efficiency 2. Lightweight construction	1. Optimal insulation 2. High strength	1. Excellent sound absorption 2. Low cost	1. Load-bearing + insulation 2. Durable
